KR50

Short Description:

1.Dual drive power head, maximum output torque: 100KN.M
2.Expansion chassis(double-width ). The operating width is 3600mm and the transport width is 2600mm. The equipment has good passability and high construction stability.
3. The maximum drilling depth is 16m. It can realize the large drilling diameter construction through different drilling tools and construction methods;
4. High traction for walking. The whole machine is flexible can meet the requirement of 20° ramp for normal driving;
5. Solid chassis which is low center of gravity and easy to move in short distance.


Product Detail

Product Tags

Technical Specification

Technical Specification Unit
Max Torque kN.m 110
Max. diameter mm 1200
Max. drilling depth m 20
Speed of rotation rpm 7-30
Max. crowd pressure kN 76
Max. crowd pull kN 90
Main winch line pull kN 65
Main winch line speed m/min 48
Auxiliary winch line pull kN 20
Auxiliary winch line speed m/min 38
Stroke(crowd system) mm 1100
Mast inclination(lateral) ° ±6
Mast inclination(forward) ° 3
Mast inclination(backward) ° 90
Max. operating pressure mpa 34.3
Pilot pressure mpa 3.9
Travel speed km/h 5.6
Traction force kN 220

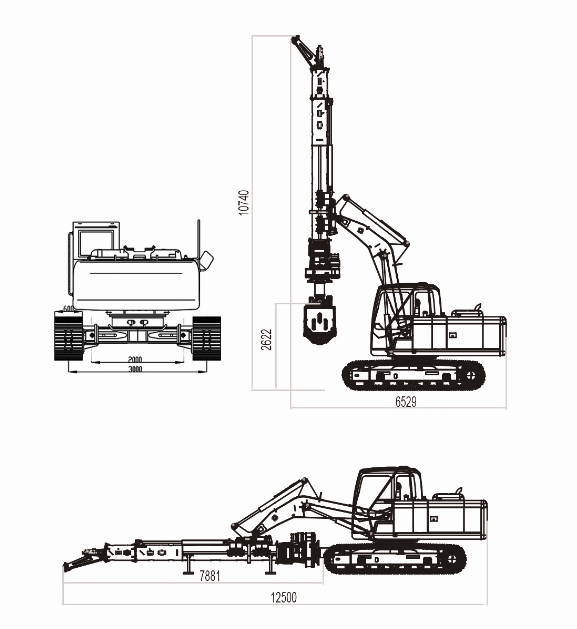

Operating height mm 10740
Operating width mm 2600
Transport height mm 3040
Transport width mm 2600
Transport length mm 12500
Overall weight t 28
Engine performance
Engine Model   CumminsQSB7
Cylinder number*Cylinder diameter*Stroke mm 6×107×124
Displacement L 6.7
Rated Power kw/rpm 124/2050
Max. Torque N.m/rpm 658/1500
Emission Standard U.S.EPA Tier3

Kelly bar Friction Kelly Bar Interlocking kelly bar
Outside(mm)   Φ325
Section*each length(m)   4×5.5
Max depth(m)   20



123123

Product Details

113
115
117
114
116
8

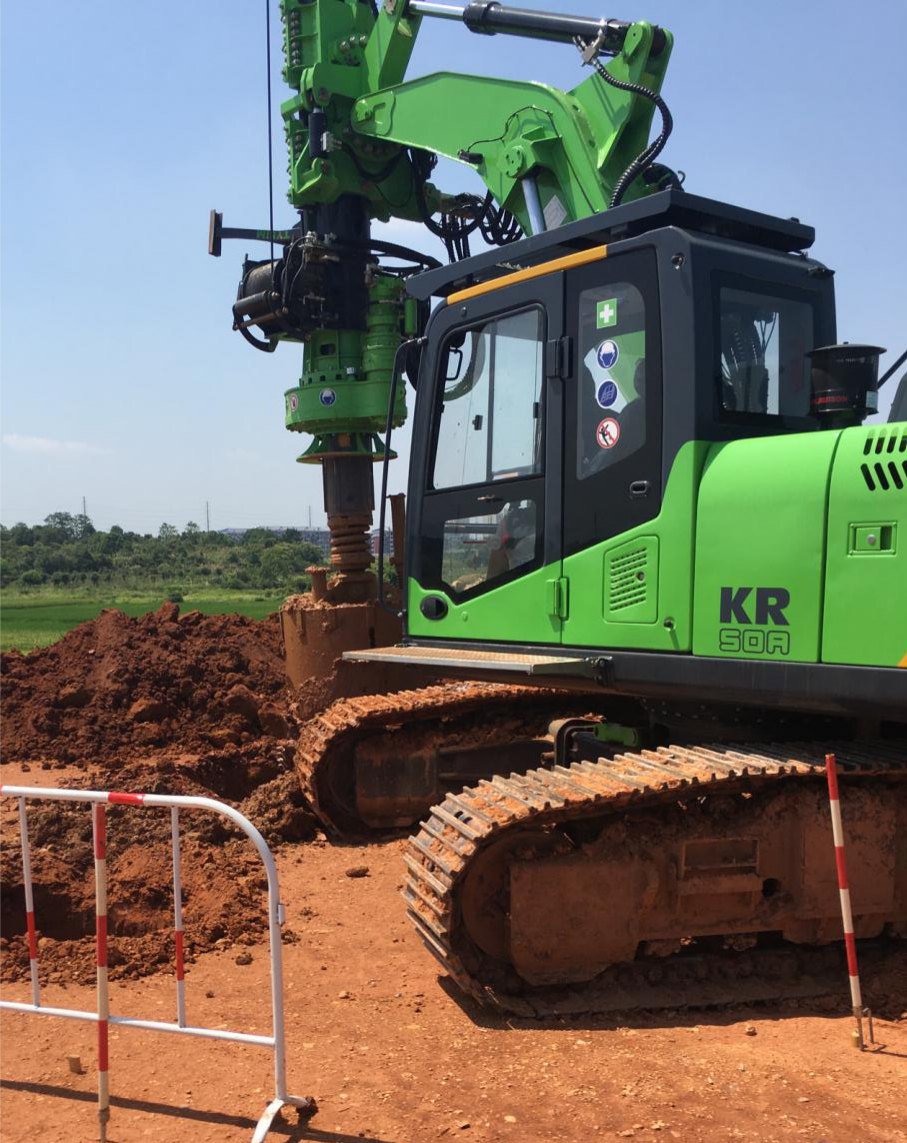

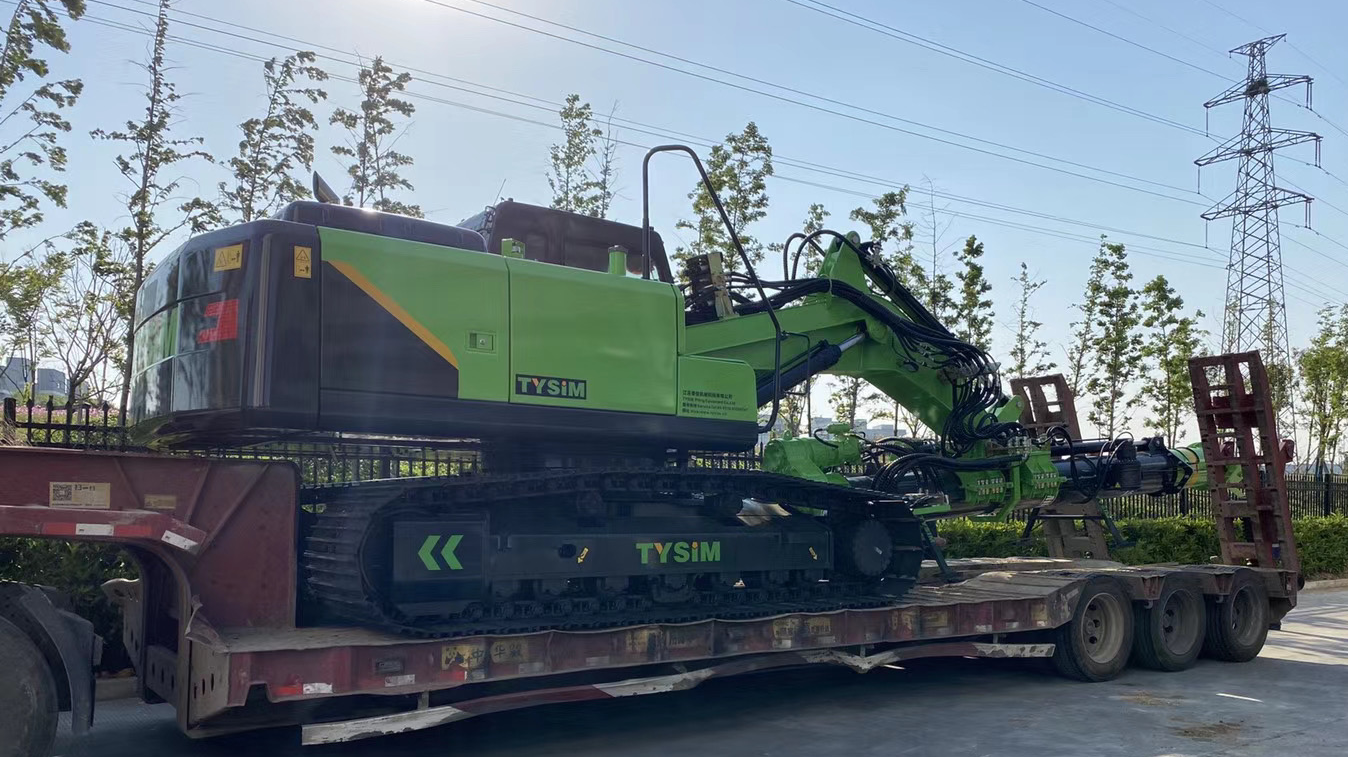

Construction photos

132
133

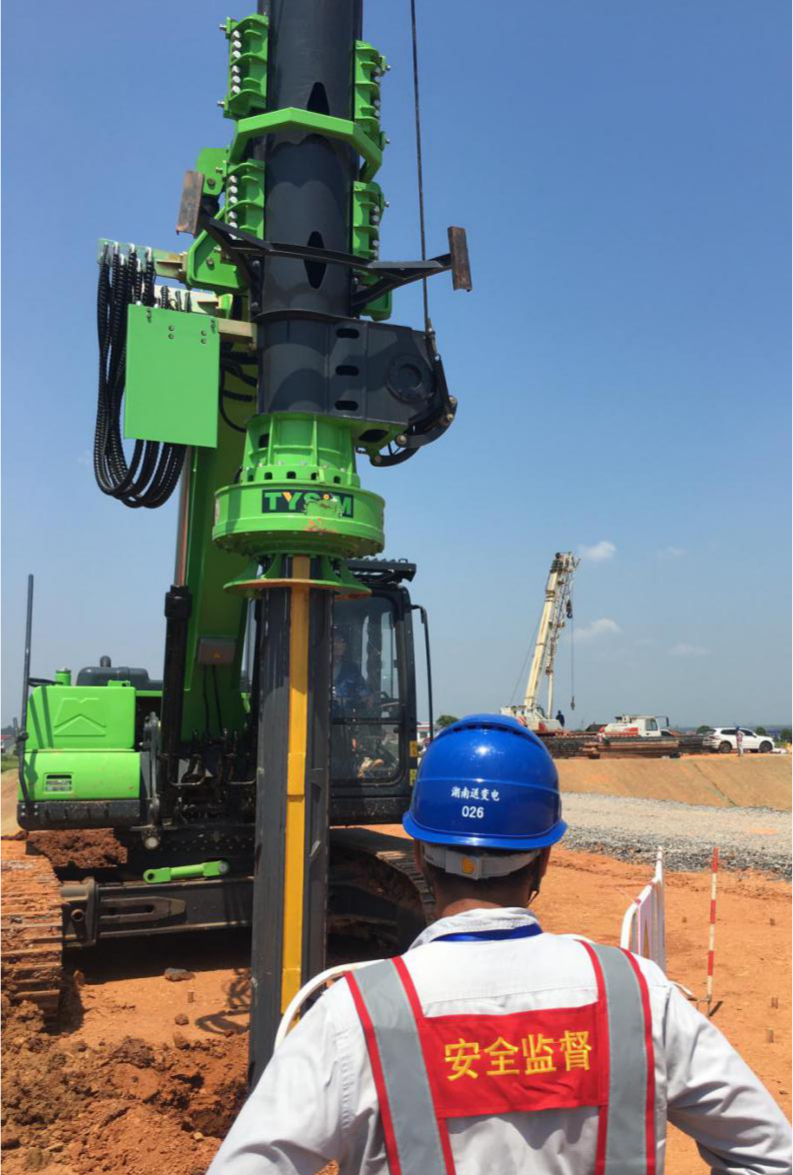

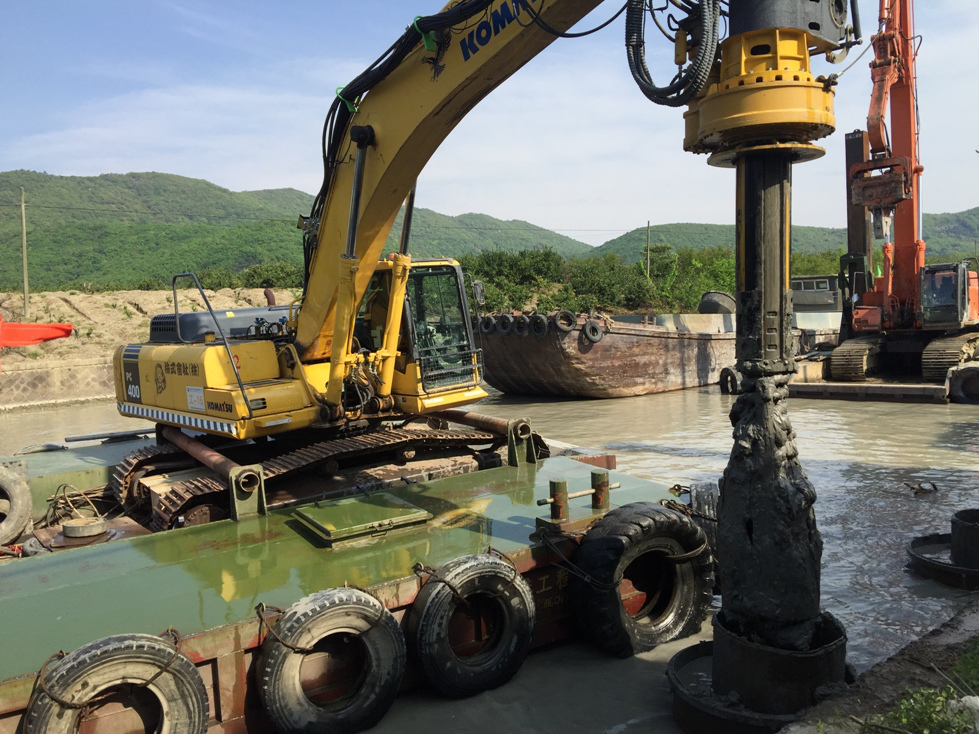

Customized KR50 drilling rig for embankment reinforcement project

134

As the river is relatively busy, the construction should ensure the normal navigation of other vessels.

Construction layer :
Silt, clay, strong weathering rock
Drilling depth:11m,
Drilling diameter:600mm,
30 minutes for one Hole.

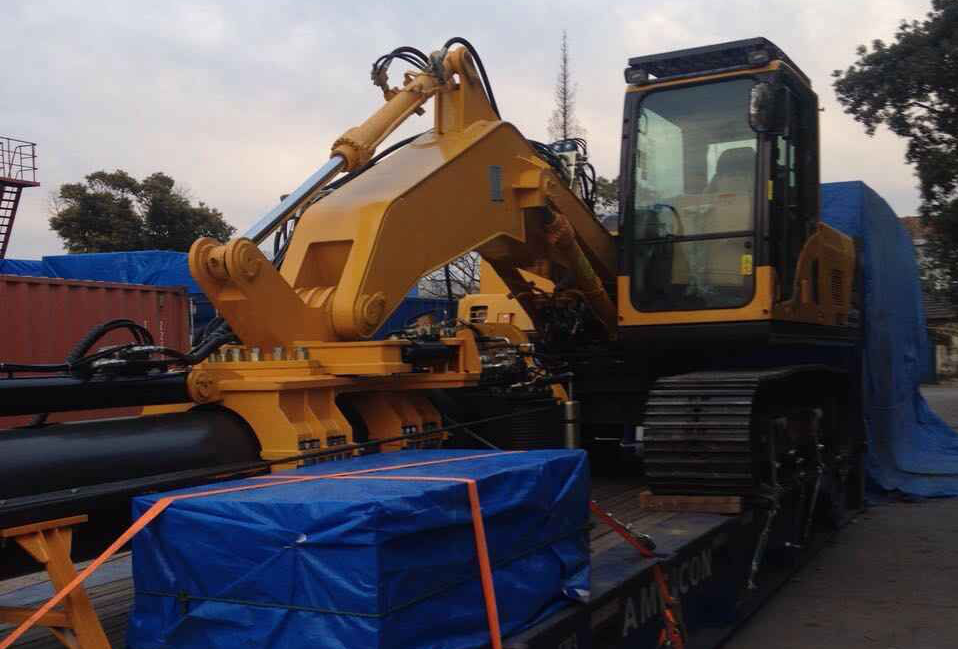

Customer Visit
