LOW HEADROOM DRILLNG RIGS(LHR)KR300DS

Short Description:

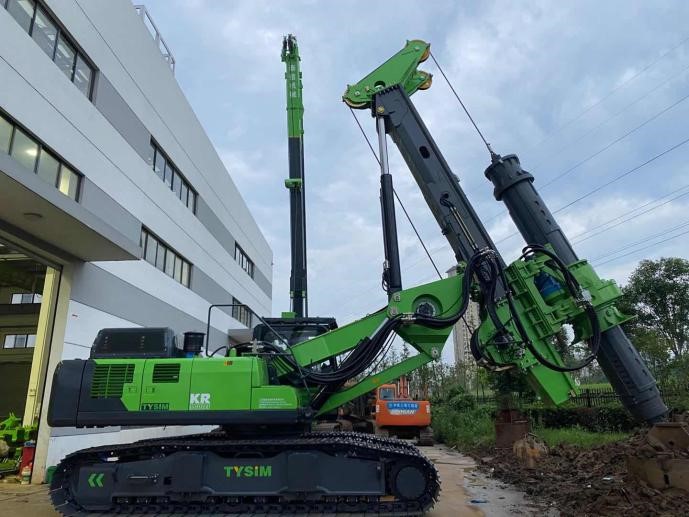

The KR300DS drilling rig in short mast configuration has a working height of only 11m. allowing the rig to be used in low headroom areas under bridges, power lines inside buildings, etc.




Product Detail

Product Tags

Technical Specification

Technical specification of KR300DS rotary drilling rig

Torque

320 kN.m

Max. diameter

2000mm

Max. drilling depth

26

Speed of rotation 6~26 rpm

Max. crowd pressure

220 kN

Max. crowd pull

230 kN

Main winch line pull

230 kN

Main winch line speed

80 m/min

Auxiliary winch line pull

110 kN

Auxiliary winch line speed

75 m/min

Stroke(crowd system)

2000 mm

Mast inclination(lateral)

±5°

Mast inclination(forward)

Max. operating pressure

35MPa

Pilot pressure

3.9 MPa

Travel speed

1.5 km/h

Traction force

550 kN

Operating height

11087 mm

Operating width

4300 mm

Transport height

3590 mm

Transport width

3000 mm

Transport length

10651 mm

Overall weight

76t

Engine

Model

Cummins QSM11

Cylinder number*diameter*stroke(mm)

6*125*147

Displacement(L)

10.8

Rated power(kW/rpm)

280/2000

Output standard

European III

Kelly bar

Type

Interlocking

Section*length

7*5000(standard)

Depth

26m



Product Details

POWER

These drilling rigs have large engine and hydraulic capacities. This translates into the rigs being able to use far more powerful winches for the Kelly bar, crowd, and pullback, as well as faster rpm at higher torque when drilling with casing in overburden. The beefed up structure can also support the additional stresses put on the rig with stronger winches.

DESIGN

Numerous design features result in less downtime and longer equipment life.

The rigs are based on reinforced CAT carriers so spare parts are easy to obtain.



6

Construction photos

1
2
3
4

Product packaging
